Click to enlarge

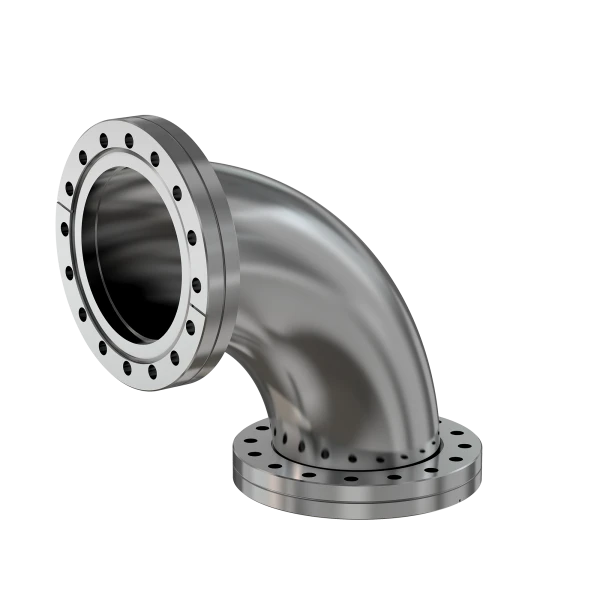

CF 90 Radius Elbow

Part Number: 2E-100
Price: $112.00
Quantity:


Features
  • The CF flange system is ideal for UHV system construction
  • Rotatable flanges make component alignment easy
  • Most popular sizes and types listed
  • Contact us at 800-824-4166 if you can't find exactly what you need
2.12" OD CF Elbow
Technical Resources
Specifications
  • Flange Size: DN 25 CF (2.12" OD)
  • Elbow Type: Radius 90 Degree
  • Material: 304 Stainless
  • Tube OD: 1"
  • Port Length: 1.67"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 0.84 lbs
CF-90-Radius-Elbows-Dia
Imperial Units
Dim A: 1.67"
Dim B: 1.50"
