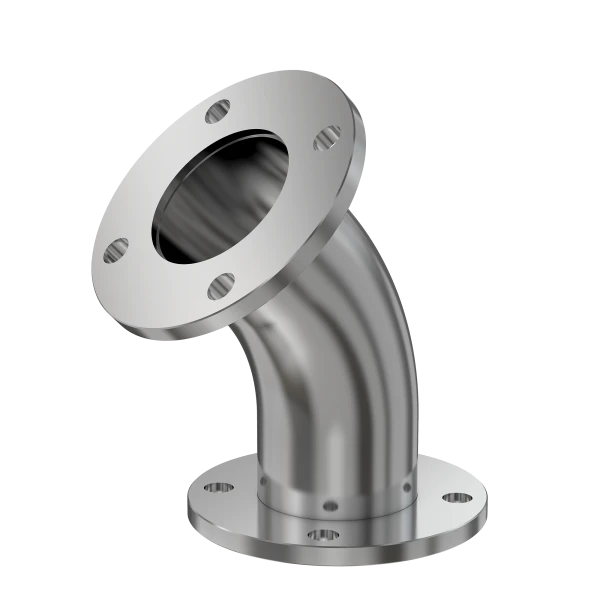

ASA 45 Degree w/ Tangents

Part Number: 2KL-ASA-5-N

Quantity:

Features

All products are available with both genders or a combination
Contact us at 800-824-4166 if you can't find exactly what you need
One each flat and grooved flange is needed to complete a connection

5" OD X 2" ID 45 Degree Radius Elbow w/Tangents

Technical Resources

Product Spec Sheet

Specifications

Flange Size: DN 1.5 (5" OD)
Elbow Type: Tangent 45 Degree
Material: 304 Stainless
Tube OD: 2"
Port Length: 2.09"
Vacuum Range: 1 · 10^-8 mbar to 1 bar
Temperature Range: -20 °C to 150 °C
Weight: 5.2 lbs

ASA-45-Radius-Elbows-Tangent-Dia

Dim A: 2.09"
