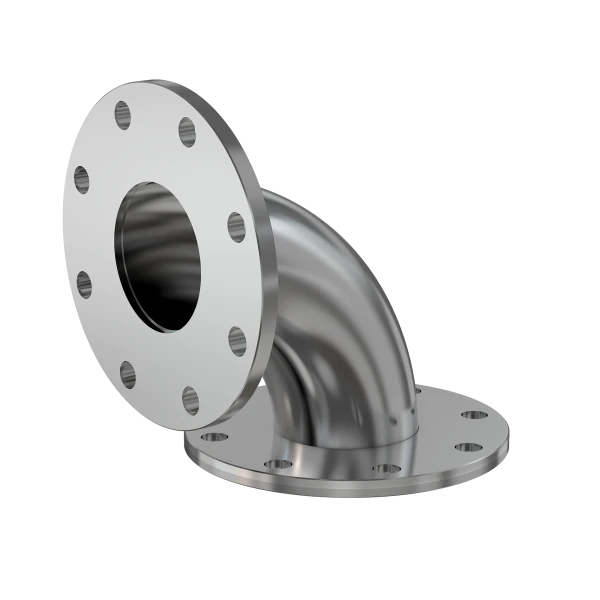

ASA Radius 90 Degree Elbow

Part Number: 2E-ASA-16-N
Quantity:


Features
  • All products are available with both genders or a combination
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • One each flat and grooved flange is needed to complete a connection
16" OD X 10" ID ASA 90 Degree Radius Elbow
Technical Resources
Specifications
  • Flange Size: DN 10 (16" OD)
  • Elbow Type: Radius 90 Degree
  • Material: 304 Stainless
  • Tube OD: 10"
  • Port Length: 15.4"
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 54 lbs
ASA-90-Degree-Radius-Elbows-Dia
Imperial Units
Dim A: 15.4"
Dim B: 15.0"

Installation Hardware
