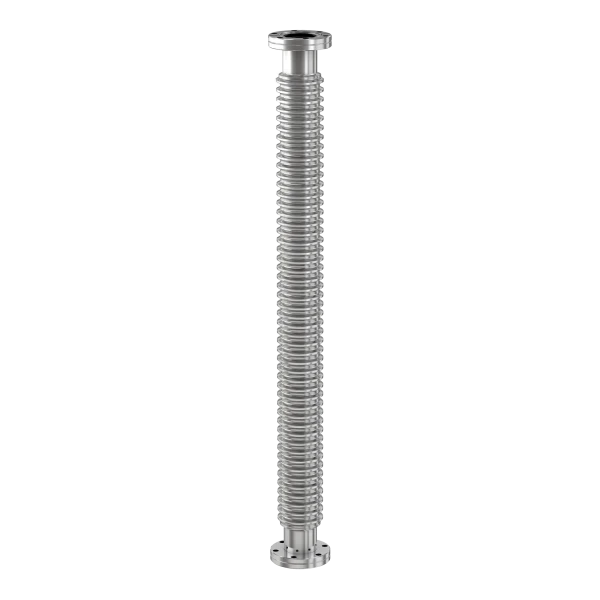

CF Thin Wall Flexible Hose

Part Number: LH-150-120-2CF
Price: $419.07
Quantity:

2.75" OD CF Thin Wall SS Flexible Hose, 120" Length
Features
  • Dampen out pump vibrations with a flex coupling
  • Easily join two mis-aligned ports using a flex hose
  • Standard lengths and flange combinations offered. Others available.
  • Thin, medium and thick wall hoses offer a range of flexibility and robustness
Specifications
  • Flange Size: DN 40 CF (2.75" OD)
  • Type: Flexible Bellows Hose
  • ID: 1-1/2"
  • Length: 120"
  • Wall Thickness: 0.010"
  • Bend Radius: 2.2"
  • Hose Material: 321 stainless
  • Flange & Cuff Material: 304 Stainless
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
CF-Flexible-Stainless-Steel-Hose-Dia
Imperial Units
