CF Wire Seal Flange

Part Number: WS-22-1800F
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Dished shape blanks and other options available
  • Robust seal tolerant of bakeout to 450C
  • Wire Seal make UHV seals possible in very large flange sizes

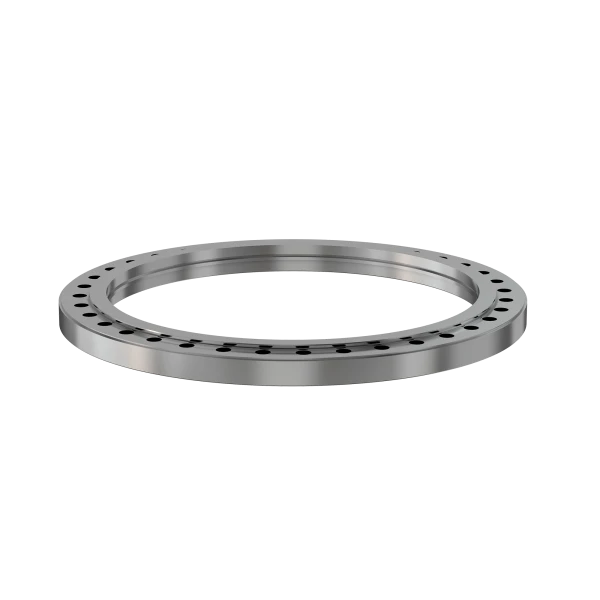

22" Wire Seal Flange, 18" Bore, Female
Technical Resources
Specifications
  • Flange Size: DN 18 (22" OD)
  • Type: Bored
  • Gender: Female
  • Material: 304 Stainless
  • Bore: 17.8"
  • Thickness: 1.50"
  • Bolt Circle: 20.2"
  • Bolt Hole Diameter: 0.656"
  • # Bolt Holes: 36
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 54 lbs
Wire-Seal-Female-Bored-Dia
Imperial Units
Dim A: 22.1"
Dim B: 1.50"
Dim C: 17.8"
Dim D: 18.0"
Dim E: 1.00"
Dim F: 20.2"
Dim G: 0.656"

Installation Hardware
