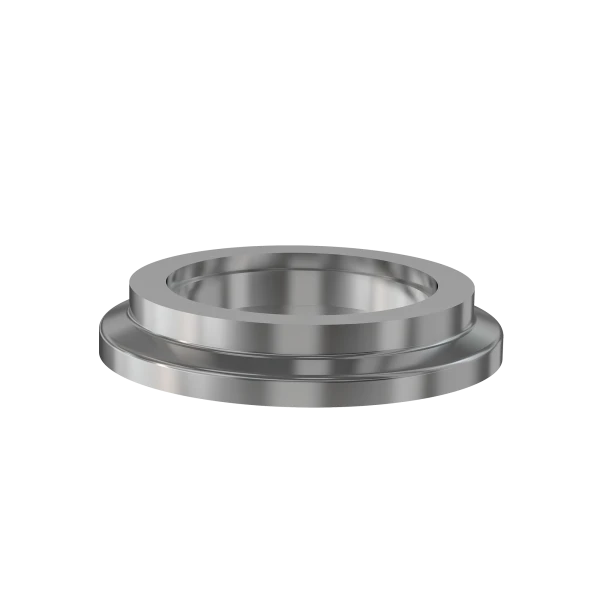

Bored EVAC Tapered Flange

Part Number: 32.217.306

Quantity:

Features

Chain clamps convenient in tight spaces, even for standard ISO-KF flanges
Contact us at 800-824-4166 if you can't find exactly what you need
Convert ISO-KF elastomer sealed systems to UHV service using EVAC seals
Ensure reliable sealing with higher compression forces

DN 63 EVAC Tapered Flange, Bored

Technical Resources

Specifications

Flange Size: DN 63
Type: Bored
Material: 304 Stainless
Bore: 2.44"
Thickness: 0.787"
Vacuum Range: 1 · 10^-11 mbar to 1 bar
Temperature Range: -270 °C to 150 °C
Weight: 1.04 lbs

EVAC-63-to-250-Tapered-Dia-bored

Dim A: 3.43"
Dim B: 0.787"
Dim C: 2.44"
Dim D: 2.51"
Dim E: 0.590"
Dim H-1: 2.71"
