CF to ASA Conical Adapter Nipple

Part Number: ANC-462-ASA-5
Price: $321.00
Quantity:


Features
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
  • Contact us at 800-824-4166 if you can't find exactly what you need

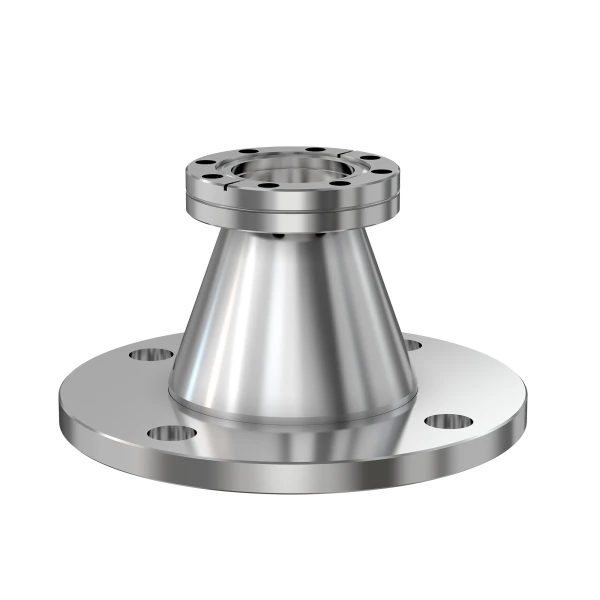

4.62" OD CF to 5" OD ASA Conical Adapter Nipple
Technical Resources
Specifications
  • Flange 1: DN 75 CF (4.62" OD)
  • Adapter Type: Conical Adapter
  • Flange 2: DN 1.5 (5" OD)
  • Material: 304 Stainless
  • Tube OD: 3"
  • Tube OD 2: 2"
  • Port Length: 4.16"
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 4.7 lbs
CF-to-ASA-Conical-Adapter-Nipples-Dia
Imperial Units
Dim A: 4.16"
