CF to ASA Straight Adapter Nipple

Part Number: AN-275-ASA-11
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed

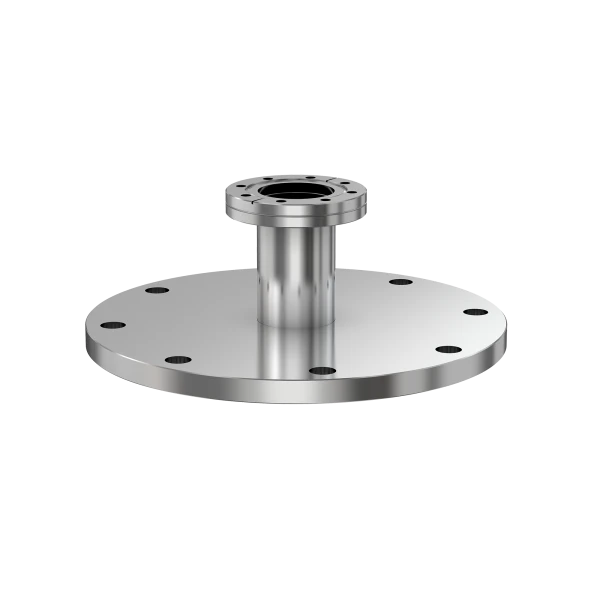

2.75" OD CF to 11" OD ASA Straight Adapter Nipple
Technical Resources
Specifications
  • Flange 1: DN 40 CF (2.75" OD)
  • Adapter Type: Straight Adapter
  • Flange 2: DN 6 (11" OD)
  • Material: 304 Stainless
  • Tube OD: 1-1/2"
  • Port Length: 5.00"
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 20.5 lbs
CF-to-ASA-Adapter-Nipples-Dia
Imperial Units
Dim A: 5.00"

Installation Hardware
