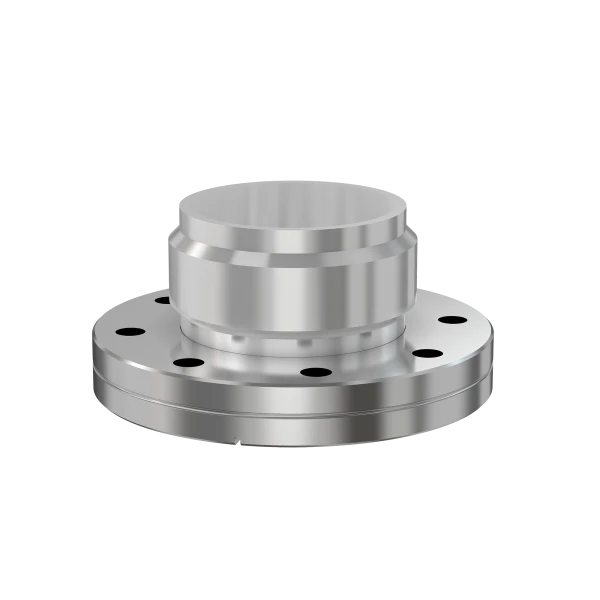

Steel/Aluminum Transition w/ Weld Neck

Part Number: ALST-150-CF
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
2.75" OD CF Stainless Steel to 1.5" Aluminum Weld Neck Transition
Technical Resources
Specifications
  • Main Size: DN 40 CF (2.75" OD)
  • Main Material: 304 Stainless
  • Transition Size: DN 40 Tube
  • Transition Material: Aluminum
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 150 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 0 lbs
Aluminum-SS-Transistion-Dia-A
Imperial Units
Dim A: 2.75"
Dim D: 1.91"
Dim E: 1.75"
Dim H-1: 1.50"
Dim H-2: 1.25"
