Steel/Aluminum Transition

Part Number: ALST-075
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed

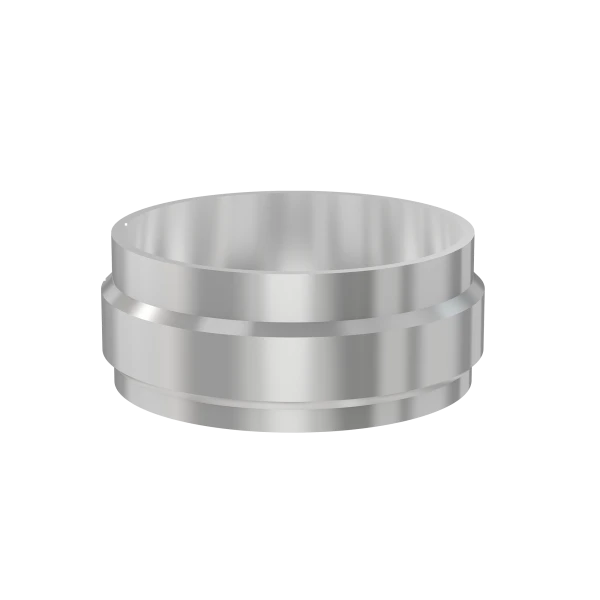

0.75" Stainless Steel to Aluminum Transition
Technical Resources
Specifications
  • Main Size: DN 16 Tube
  • Main Material: 304 Stainless
  • Transition Size: DN 16 Tube
  • Transition Material: Aluminum
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 150 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 0.73 lbs
Aluminum-SS-Transistion-Dia-B
Imperial Units
Dim D: 1.70"
Dim E: 1.00"
Dim H-1: 0.750"
Dim H-2: 0.500"
