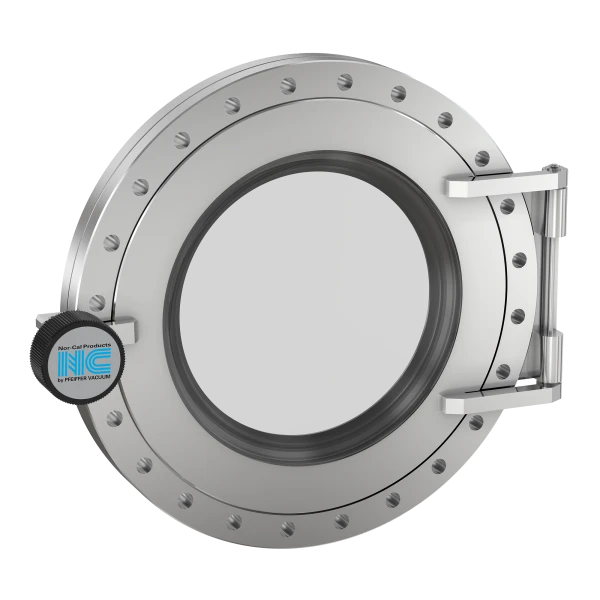

Loadlock Door with Window

Part Number: ADVQ-450

  • Standard windows made with borosilicate glass or quartz
  • Specialized materials including sapphire also available
  • Viewport shutters keep the glass contamination free
  • Use our Add-a-Doors to create your own system load lock
  • Contact us at 800-824-4166 if you can't find exactly what you need
4.5" OD CF Add-A-Door with Fused Silica Viewport
Technical Resources
  • Loadlock Door Type: with Window
  • Flange Size / Type: DN 63 CF (4.5" OD)
  • Viewport Material: Fused silica (Quartz)
  • Door & Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-9 mbar to 1 bar (high vacuum)
  • Temperature Range: -20 °C to 200 °C
  • Weight: 5 lbs
Imperial Units
Dim A: 2.44"
Dim B: 0.687"
Dim C: 1.40"
